Technical Specifications
Rohm BA038LBSG2-TR technical specifications.
General
| Dropout Voltage | 90mV |
| Lead Free | Lead Free |
| Max Input Voltage | 7V |
| Min Input Voltage | 30mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 280mA |
| Min Output Voltage | 3.8V |
| Max Power Dissipation | 170mW |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 280mA |
| Output Type | Fixed |
| Output Voltage | 3.8V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BA038LBSG2-TR Datasheet
Download the complete datasheet for Rohm BA038LBSG2-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

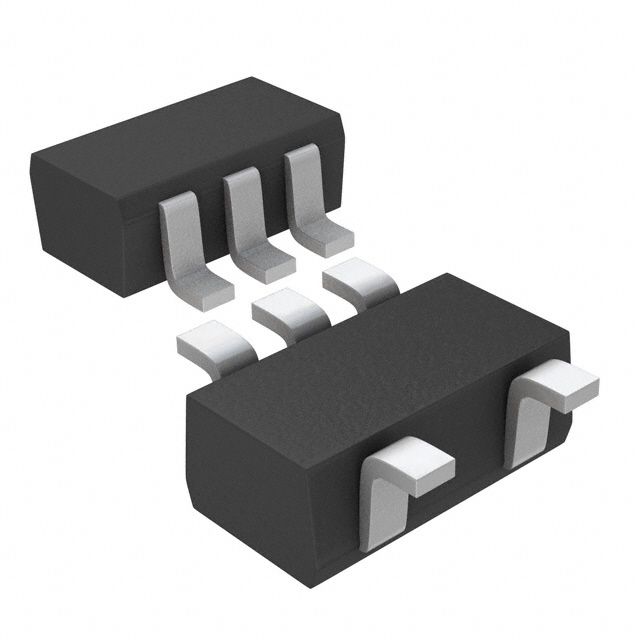

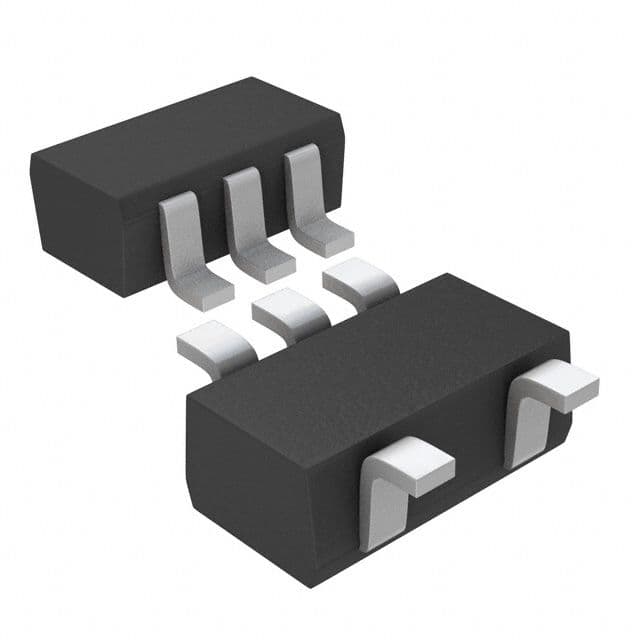

Product Images
