Positive fixed output linear voltage regulator IC with a 9V nominal output voltage and 1A maximum output current. Features a 2V dropout voltage, 26V maximum input voltage, and operates from 11.5V minimum input. Surface mount TO-252 package with 1W maximum power dissipation and 64dB PSRR. RoHS compliant and lead-free, suitable for operation between -40°C and 85°C.
PackageTO-252
MountingSurface Mount
PolarityPositive
Power1kW
Quick Jump:
Technical Specifications
Rohm BA17809FP-E2 technical specifications.
General
Package/Case
TO-252
Dropout Voltage
2V
Lead Free
Lead Free
Max Input Voltage
26V
Min Input Voltage
11.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Power Dissipation
1W
Max Supply Current
6mA
Mount
Surface Mount
Nominal Output Voltage
9V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
9V
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
1kW
Power Supply Rejection Ratio (PSRR)
64dB
Quiescent Current
4.5mA
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Rohm BA17809FP-E2 Datasheet
Download the complete datasheet for Rohm BA17809FP-E2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

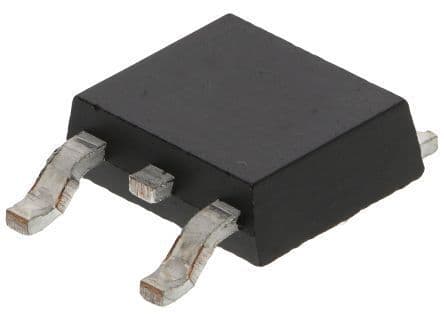

Product Images
