Quad operational amplifier featuring a 500kHz gain bandwidth product and 0.2V/µs slew rate. This general-purpose amplifier offers a 100dB voltage gain and 50dB common mode rejection ratio. It operates with a dual supply voltage range of 1.5V to 16V, or a single supply from 3V to 32V. The component is housed in a 14-pin SSOP package for surface mounting, with a maximum input offset voltage of 2mV and input bias current of 20nA. Rated for operation between -40°C and 125°C, this RoHS compliant device is supplied on tape and reel.
PackageSSOP
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BA2902FV-E2 technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | SSOP |
| Common Mode Rejection Ratio | 50dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 500kHz |
| Height | 1.05mm |
| Input Bias Current | 20nA |
| Input Offset Voltage (Vos) | 2mV |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Dual Supply Voltage | 16V |
| Min Dual Supply Voltage | 1.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Operating Supply Current | 700uA |
| Operating Supply Voltage | 16V |
| Output Current | 30mA |
| Output Current per Channel | 30mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.2V/µs |
| Supply Current | 3mA |
| Technology | BIPOLAR |
| Voltage Gain | 100dB |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BA2902FV-E2 Datasheet
Download the complete datasheet for Rohm BA2902FV-E2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

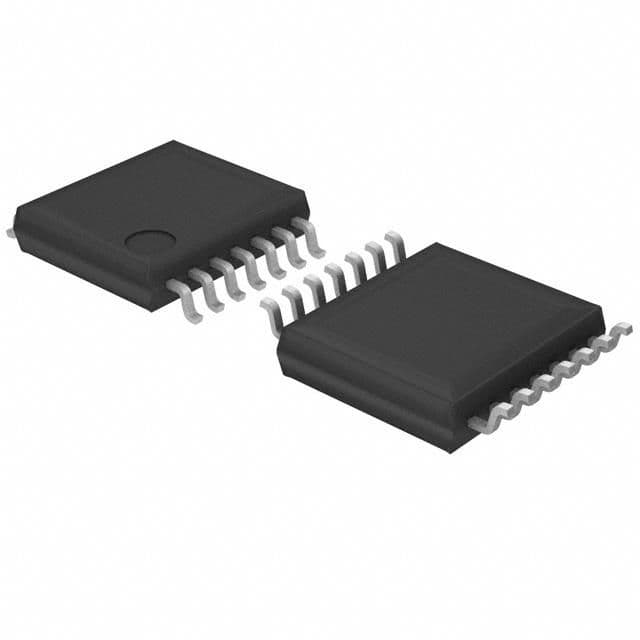

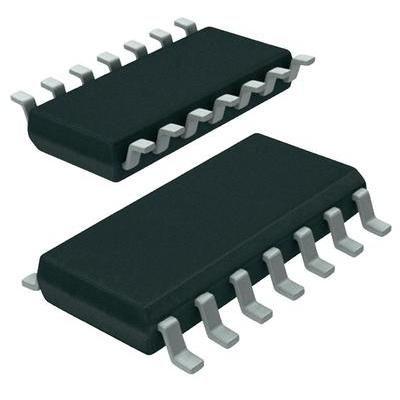

Product Images
