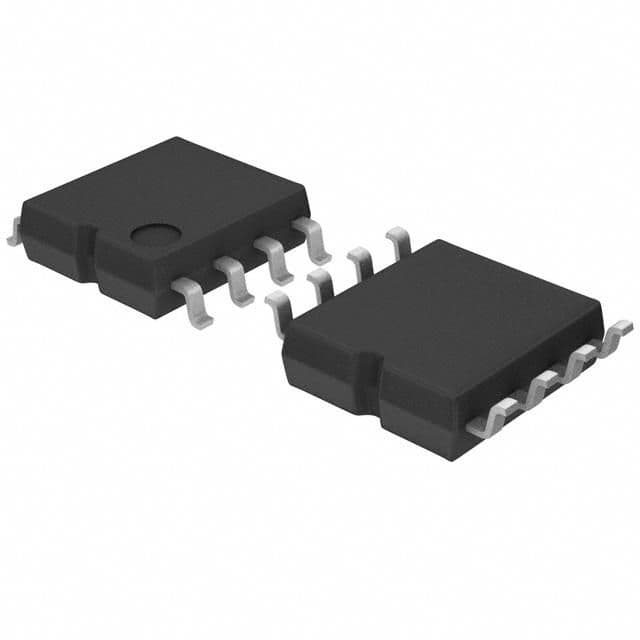

The BA3121F-E2 is a dual audio amplifier from Rohm with a maximum operating temperature of 85°C and a minimum operating temperature of -30°C. It has a maximum power dissipation of 450mW and a maximum supply voltage of 18V. The amplifier is surface mountable and has a RoHS compliance. It operates at a supply voltage of 12V and has a supply current of 9mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Rohm BA3121F-E2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOP |
| Contact Plating | Copper, Tin |
| Gain | 1.5dB |
| Height | 1.5mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Load Impedance | 1.8kR |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Power Dissipation | 450mW |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Operating Supply Voltage | 12V |
| Output Power | 450mW |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 9mA |
| Width | 4.4mm |
| RoHS | Compliant |
