Dual operational amplifier featuring a 10MHz gain bandwidth product and 5V/µs slew rate. This general-purpose op-amp offers a 90dB voltage gain and 60dB common mode rejection ratio. It operates with a supply voltage range of 2V to 7V, drawing 5mA operating supply current. The bipolar technology device is housed in a RoHS compliant SOP package for surface mounting.
PackageSOP
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BA4510F-E2 technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | SOP |
| Common Mode Rejection Ratio | 60dB |
| Gain Bandwidth Product | 10MHz |
| Input Bias Current | 80nA |
| Input Offset Voltage (Vos) | 1mV |
| Input Offset Voltage-Max | 1mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 3.5V |
| Min Dual Supply Voltage | 1V |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage | 7V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Operating Supply Current | 5mA |
| Operating Supply Voltage | 3.5V |
| Output Current per Channel | 10mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 5V/µs |
| Slew Rate-Nom | 5V/µs |
| Supply Current | 5mA |
| Technology | BIPOLAR |
| Voltage Gain | 90dB |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BA4510F-E2 Datasheet
Download the complete datasheet for Rohm BA4510F-E2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

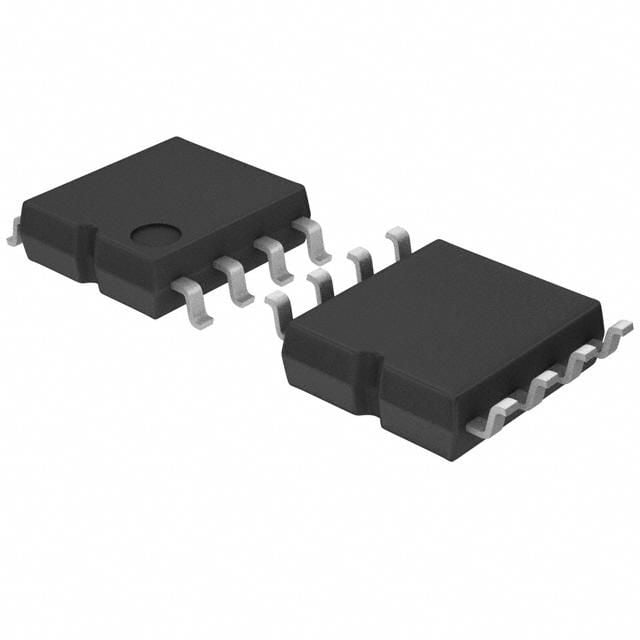

Product Images
