5V Fixed Positive Linear Voltage Regulator, TO-220-3 package, 1A output current. Features a 2V dropout voltage, 25V maximum input voltage, and 800µA maximum supply current. Operates across a -40°C to 85°C temperature range with 78dB PSRR. Through-hole mounting, copper/tin contact plating, and RoHS compliant.
PackageTO-220-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Rohm BA7805CP-E2 technical specifications.
General
| Package/Case | TO-220-3 |
| Contact Plating | Copper, Tin |
| Dropout Voltage | 2V |
| Max Input Voltage | 25V |
| Min Input Voltage | 7.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Min Output Voltage | 5V |
| Max Power Dissipation | 22W |
| Max Supply Current | 800uA |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 78dB |
| Quiescent Current | 8mA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BA7805CP-E2 Datasheet
Download the complete datasheet for Rohm BA7805CP-E2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

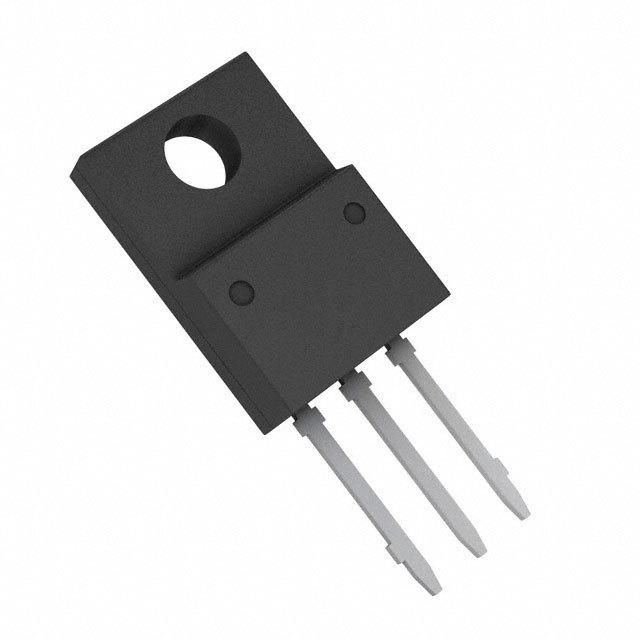

Product Images
