PackageTO-252-3
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Rohm BA7806FP-E2 technical specifications.
General
Package/Case
TO-252-3
Contact Plating
Copper, Tin
Max Input Voltage
21V
Min Input Voltage
8.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Min Output Voltage
6V
Max Power Dissipation
10W
Max Supply Current
800uA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
6V
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
73dB
Quiescent Current
8mA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Rohm BA7806FP-E2 Datasheet
Download the complete datasheet for Rohm BA7806FP-E2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

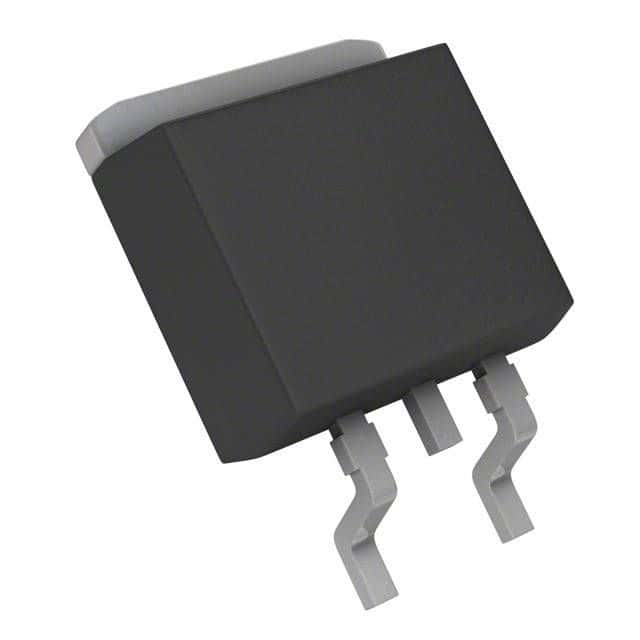

Product Images
