The BA7820FP-E2 is a single-output linear voltage regulator from Rohm with a fixed output voltage of 20V and a maximum output current of 1A. It operates over a temperature range of -40°C to 85°C and is packaged in a TO-252-3 surface mount package. The regulator has a power supply rejection ratio of 60dB and a quiescent current of 8mA. It is RoHS compliant and available in quantities of 2000 per reel.
PackageTO-252-3
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Rohm BA7820FP-E2 technical specifications.
General
| Package/Case | TO-252-3 |
| Contact Plating | Copper, Tin |
| Max Input Voltage | 33V |
| Min Input Voltage | 23V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Min Output Voltage | 20V |
| Max Power Dissipation | 10W |
| Max Supply Current | 800uA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 20V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Quiescent Current | 8mA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BA7820FP-E2 Datasheet
Download the complete datasheet for Rohm BA7820FP-E2 to view detailed technical specifications.
No datasheet is available for this part.

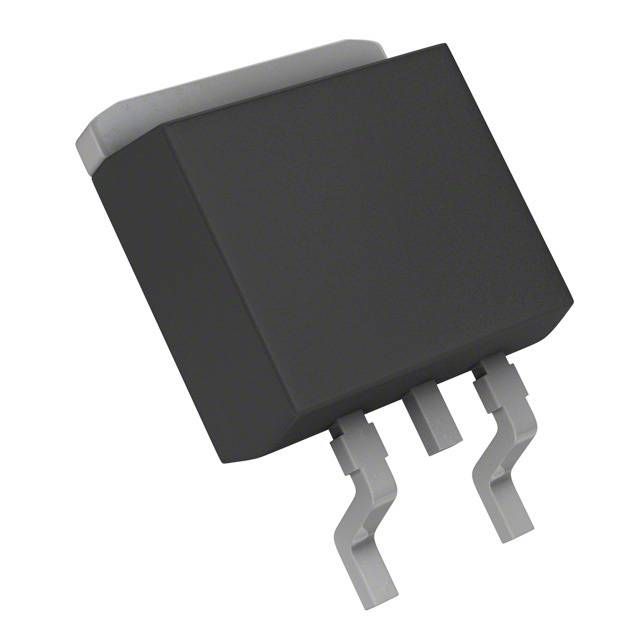

Product Images
