PackageTO-252-3
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BA78M07FP-E2 technical specifications.
General
Package/Case
TO-252-3
Contact Plating
Copper, Tin
Max Input Voltage
22V
Min Input Voltage
9.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
7V
Max Power Dissipation
10W
Max Supply Current
800uA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
7V
Package Quantity
2000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
71dB
Quiescent Current
6mA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Rohm BA78M07FP-E2 Datasheet
Download the complete datasheet for Rohm BA78M07FP-E2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

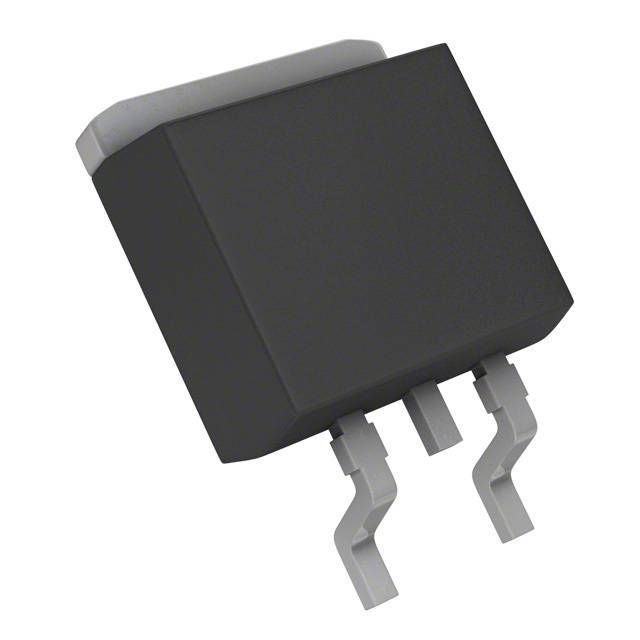

Product Images
