The BD33IC0WEFJ-E2 is a single-output linear voltage regulator with a nominal output voltage of 3.3V and a maximum output current of 1A. It has a maximum power dissipation of 2.11W and a quiescent current of 250uA. The regulator is available in a VSOP-8 package and is suitable for surface mount applications. It operates over a temperature range of -25°C to 85°C and is compliant with RoHS regulations.
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Rohm BD33IC0WEFJ-E2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Rohm BD33IC0WEFJ-E2 technical specifications.
General
| Dropout Voltage | 400mV |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Min Output Voltage | 3.3V |
| Max Power Dissipation | 2.11W |
| Max Supply Current | 500uA |
| Mount | Surface Mount |
| Nominal Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Quiescent Current | 250uA |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BD33IC0WEFJ-E2 Datasheet
Download the complete datasheet for Rohm BD33IC0WEFJ-E2 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

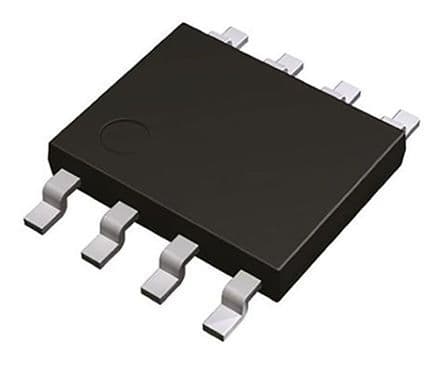

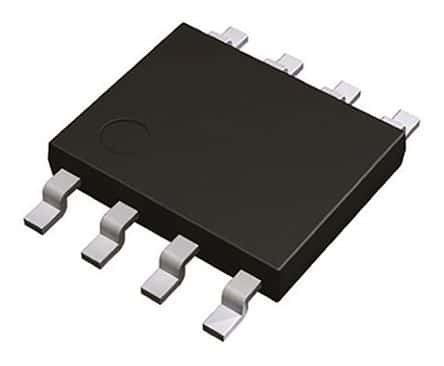

Product Images
