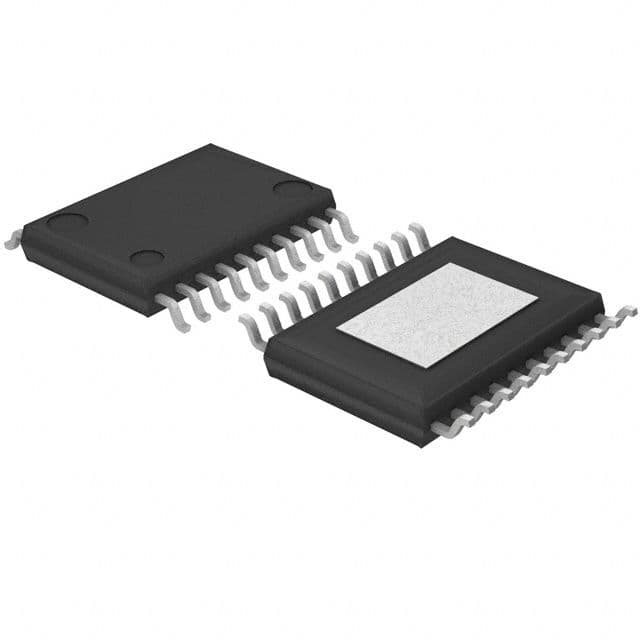

Fixed positive LDO regulator, offering a stable 1.2V output voltage with a maximum output current of 4A. This CMOS integrated circuit operates within an input voltage range of 4.3V to 5.5V and features a low input bias current of 1.4mA. Housed in a 20-pin HTSSOP package with dimensions of 6.50 x 6.40 mm and 1mm height, it supports surface mounting with copper and tin contact plating. The device is RoHS compliant and designed for operation between -10°C and 100°C, with a maximum power dissipation of 3.2W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Rohm BD35221EFV-E2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Rohm BD35221EFV-E2 technical specifications.
| Package/Case | HTSSOP |
| Contact Plating | Copper, Tin |
| Input Bias Current | 1.4mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 4.3V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 4A |
| Max Output Voltage | 1.2V |
| Min Output Voltage | 1.2V |
| Max Power Dissipation | 3.2W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.3V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 4A |
| Output Type | Fixed |
| Output Voltage | 1.2V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | BD35221EFV |
| Termination | SMD/SMT |
| RoHS | Compliant |
