PackageTO-261-4
Quick Jump:
Technical Specifications
Rohm BD433M2WFP3-CE2 technical specifications.
General
Package/Case
TO-261-4
Dropout Voltage
200mV
Lead Free
Lead Free
Max Input Voltage
42V
Min Input Voltage
4.3V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Min Output Voltage
3.3V
Max Supply Current
150uA
Nominal Output Voltage
3.3V
Number of Regulators
1
Output Configuration
Positive
Output Current
200mA
Output Type
Fixed
Output Voltage
3.3V
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
65dB
Quiescent Current
90uA
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Rohm BD433M2WFP3-CE2 Datasheet
Download the complete datasheet for Rohm BD433M2WFP3-CE2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

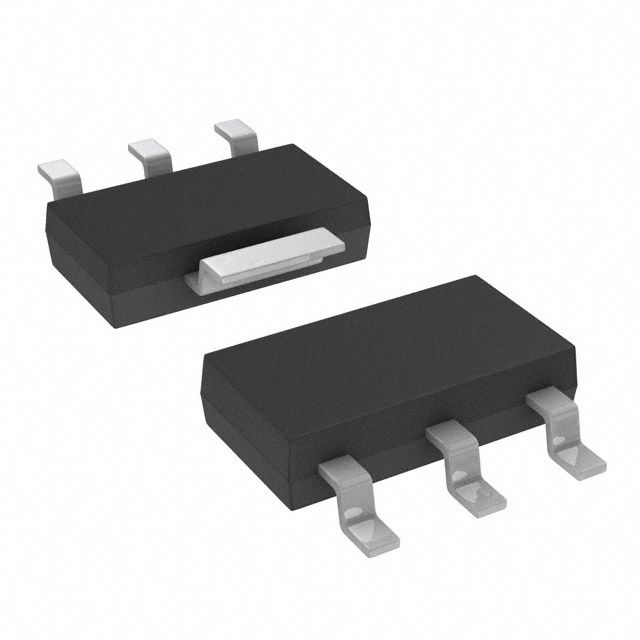

Product Images
