CMOS power supply support circuit featuring a fixed, single-channel +4.2V threshold voltage with 1% accuracy. This integrated circuit offers active-low reset functionality and operates within a supply voltage range of 950mV to 6.5V. Designed for surface mounting in an SSOP-5 package, it supports a maximum output current of 2.2mA and has a maximum power dissipation of 540mW. Operating temperature range is -40°C to 105°C, and the component is RoHS compliant and lead-free.
PackageSSOP
MountingSurface Mount
Power540mW
Quick Jump:
Technical Specifications
Rohm BD5242G-TR technical specifications.
General
| Accuracy | 1% |
| Package/Case | SSOP |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2.2mA |
| Max Power Dissipation | 540mW |
| Max Reset Threshold Voltage | 4.242V |
| Min Reset Threshold Voltage | 4.158V |
| Max Supply Voltage | 6.5V |
| Min Supply Voltage | 950mV |
| Mount | Surface Mount |
| Number of Monitored Inputs | 1 |
| Number of Voltages Monitored | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 540mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reset | Active Low |
| RoHS Compliant | Yes |
| Series | BD52 |
| Threshold Voltage | 4.2V |
| Type | Simple Reset/Power-On Reset |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BD5242G-TR Datasheet
Download the complete datasheet for Rohm BD5242G-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

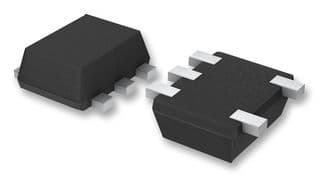

Product Images
