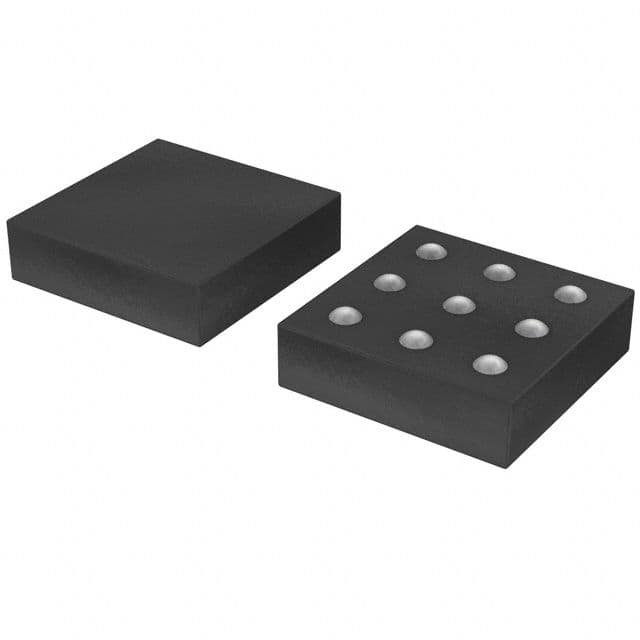

The BD5460GUL-E2 is a surface mount audio amplifier from Rohm with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It has a maximum supply voltage of 5.5V and a minimum supply voltage of 2.5V. The amplifier is RoHS compliant and has a maximum power dissipation of 690mW. It is available in a WLCSP-9 package type with a 1.60 x 1.60 mm footprint and a 0.55 mm pitch.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Rohm BD5460GUL-E2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Rohm BD5460GUL-E2 technical specifications.
| Contact Plating | Copper, Tin, Silver |
| Gain | 5.9dB |
| Load Impedance | 8R |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 850mW |
| Max Power Dissipation | 690mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Supply Voltage | 5V |
| Output Power | 850mW |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2mA |
| Supply Type | Single |
| Termination | SMD/SMT |
| RoHS | Compliant |
