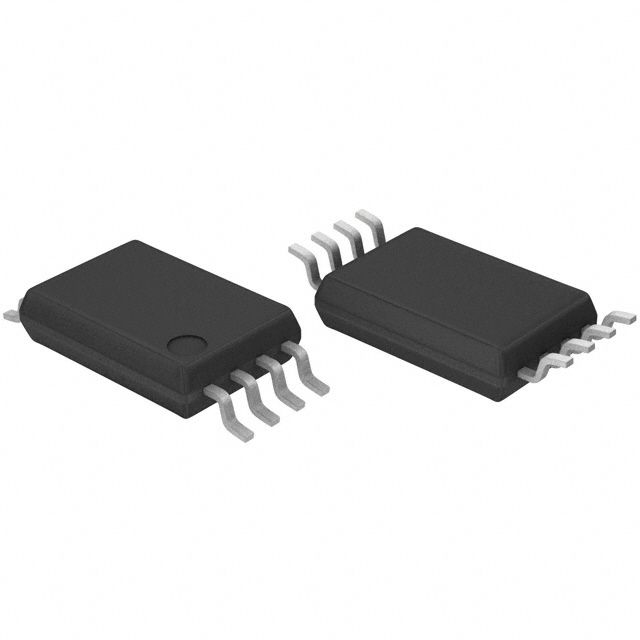

The BD6111FV-E2 is a surface-mount inverting charge pump DC/DC controller from Rohm. It operates within a temperature range of -20°C to 70°C and can handle input voltages between 2.5V and 5.5V. This device features a negative output configuration and can supply up to 20mA of current. The BD6111FV-E2 is available in a tape and reel package with 2500 units per reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Rohm BD6111FV-E2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Rohm BD6111FV-E2 technical specifications.
| Package/Case | LSSOP |
| Logic Function | Inverting |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Negative |
| Output Current | 20mA |
| Output Voltage | -2V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Synchronous Rectifier | No |
| Topology | Charge Pump |
| RoHS | Compliant |
Download the complete datasheet for Rohm BD6111FV-E2 to view detailed technical specifications.
