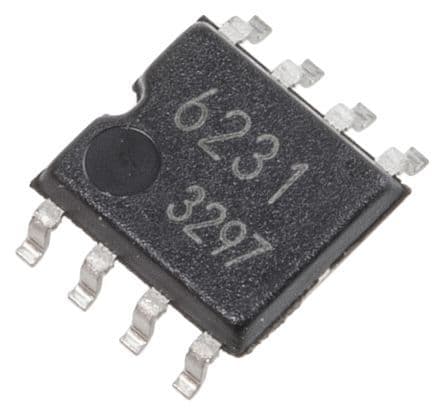

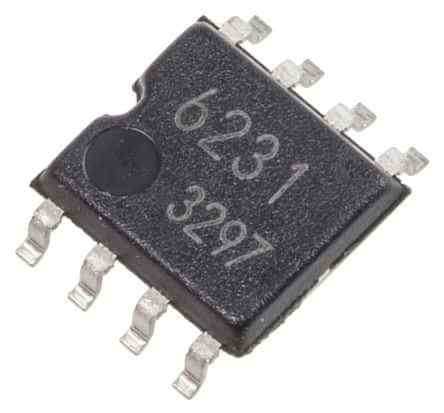

Surface mountable brushed DC motor controller with a 1A maximum output current. Features a 6V to 32V operating supply voltage range and an On/Off interface. This integrated circuit operates within a temperature range of -40°C to 85°C, consuming 2.5mA of operating supply current. Packaged in a compact SOP (Small Outline Package) with dimensions of 5mm length, 4.4mm width, and 1.5mm height, it is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Rohm BD6231F-E2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Rohm BD6231F-E2 technical specifications.
| Package/Case | SOP |
| Height | 1.5mm |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Collector Current | 1A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 6V |
| Motor Type | Brushed |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Current | 2.5mA |
| Output Current | 1A |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | BD6231F |
| Weight | 0.030018oz |
| Width | 4.4mm |
| RoHS | Compliant |
