Dual-channel MOS peripheral driver IC featuring high-side output configuration and 500mA maximum output current. This surface-mount component operates with an input voltage range of 2.7V to 5.5V and offers over-temperature and reverse current fault protection. The device is packaged in a RoHS compliant SOP-8 package with a maximum power dissipation of 560mW and an on-state resistance of 100mR.
PackageSOP
Current85uA
MountingSurface Mount
Power560mW
Quick Jump:
Technical Specifications
Rohm BD6512F-E2 technical specifications.
General
| Package/Case | SOP |
| Fault Protection | Over Temperature, Reverse Current |
| Height | 1.5mm |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 500mA |
| Max Power Dissipation | 560mW |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Number of Switches | 2 |
| On-State Resistance | 100mR |
| Output Configuration | High Side |
| Output Current | 500mA |
| Output Power | 560mW |
| Output Voltage | 6.3V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 560mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 85uA |
| Thickness | 1.5mm |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BD6512F-E2 Datasheet
Download the complete datasheet for Rohm BD6512F-E2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

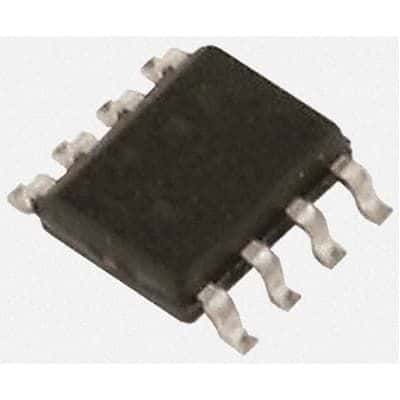

Product Images
