ROHM

BD6517F-E2

Datasheet

2-Ch Peripheral Driver, 500mA, SOP, Overtemp/Rev Current Protection

Rohm

BD6517F-E2

Name: BD6517F-E2 Rohm
Brand: Rohm
SKU: BD6517F-E2

2-Ch Peripheral Driver, 500mA, SOP, Overtemp/Rev Current Protection

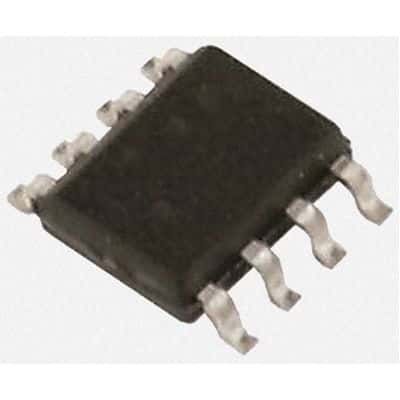

2-channel peripheral driver IC featuring over-temperature and reverse current fault protection. This surface-mount device operates with a minimum input voltage of 2.7V and a maximum of 5.5V, and a supply voltage range of 3V to 5.5V. It offers a maximum output current of 500mA per channel with a high-side output configuration and a maximum output voltage of 6V. The component is housed in a compact SOP package with dimensions of 5mm (length) x 4.4mm (width) x 1.5mm (height), and an on-state resistance of 110mR.

PackageSOP

Current500mA

MountingSurface Mount

Power560mW

Quick Jump:

Technical Specifications

Rohm BD6517F-E2 technical specifications.

General

Package/Case	SOP
Fault Protection	Over Temperature, Reverse Current
Height	1.5mm
Interface	On/Off
Length	5mm
Max Input Voltage	5.5V
Min Input Voltage	2.7V
Max Operating Temperature	85°C
Min Operating Temperature	-25°C
Max Output Current	500mA
Max Output Voltage	6.3V
Min Output Voltage	-300mV
Max Power Dissipation	560mW
Max Supply Voltage	5.5V
Min Supply Voltage	3V
Mount	Surface Mount
Number of Channels	2
Number of Outputs	2
Number of Switches	2
On-State Resistance	110mR
Output Configuration	High Side
Output Current	500mA
Output Voltage	6V
Package Quantity	2500
Packaging	Tape and Reel
Power Dissipation	560mW
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Supply Current	500mA
Termination	SMD/SMT
Width	4.4mm
