SOP-8 surface mount power management IC featuring a fixed, single-channel output with a 2A maximum output current and 6V maximum output voltage. This component operates within a 3V to 5.5V input voltage range and offers over-temperature and reverse current fault protection. With a low 50mR on-state resistance and 110uA supply current, it is RoHS compliant and suitable for applications requiring efficient power control.
PackageSOP
Voltage3V
Current110uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BD6522F-E2 technical specifications.
General
| Package/Case | SOP |
| Fault Protection | Over Temperature, Reverse Current |
| Height | 1.5mm |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 2A |
| Max Output Voltage | 6V |
| Max Power Dissipation | 560mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| On-State Resistance | 50mR |
| Output Configuration | High Side |
| Output Current | 2A |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 560mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 110uA |
| Termination | SMD/SMT |
| Voltage | 3V |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BD6522F-E2 Datasheet
Download the complete datasheet for Rohm BD6522F-E2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

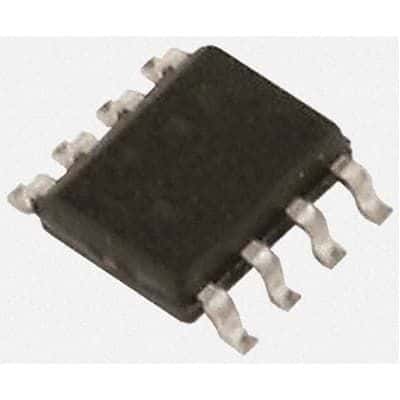

Product Images
