Fixed positive LDO regulator offering a 7V output voltage with a 1A maximum output current. Features a 600mV dropout voltage and operates from a 4.5V to 14V input voltage range. Designed for surface mount applications with a PDSO8 package, this CMOS device boasts a low 6µA quiescent current and a maximum supply current of 15µA. Suitable for automotive applications with AEC-Q100 qualification, it operates across a wide temperature range of -40°C to 105°C and is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BD70GC0MEFJ-ME2 technical specifications.
General
Dropout Voltage
600mV
Input Bias Current
600uA
Max Input Voltage
14V
Min Input Voltage
4.5V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
1A
Min Output Voltage
7V
Max Power Dissipation
2.11W
Max Supply Current
15uA
Mount
Surface Mount
Nominal Output Voltage
7V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
7V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
6uA
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Compliance
RoHS
Compliant
Datasheet
Rohm BD70GC0MEFJ-ME2 Datasheet
Download the complete datasheet for Rohm BD70GC0MEFJ-ME2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

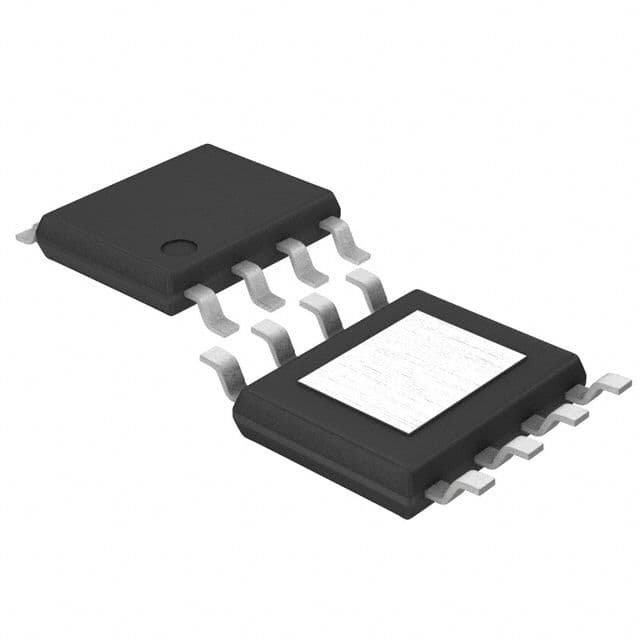

Product Images
