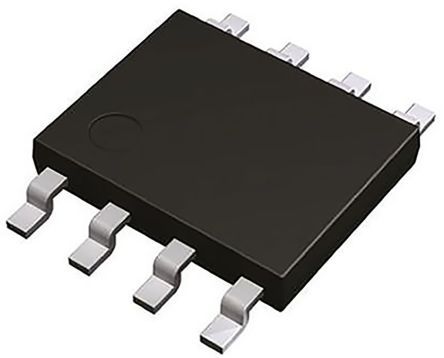

The BD733L2EFJ-CE2 is a single-output linear voltage regulator with a nominal output voltage of 3.3V and a maximum output current of 200mA. It operates over a temperature range of -40°C to 125°C and is compliant with AEC-Q100. The regulator is packaged in an HTSOP-8 surface mount package and is available in quantities of 2500 per reel. The device is RoHS compliant and suitable for automotive applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Rohm BD733L2EFJ-CE2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Dropout Voltage | 600mV |
| Max Input Voltage | 45V |
| Min Input Voltage | 4.37V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Power Dissipation | 750mW |
| Mount | Surface Mount |
| Nominal Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 200mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| RoHS | Compliant |
Download the complete datasheet for Rohm BD733L2EFJ-CE2 to view detailed technical specifications.
