Fixed positive LDO regulator offering a 3.3V output voltage with a 600mV dropout voltage. This CMOS linear voltage regulator supports a maximum input voltage of 45V and a minimum of 4.37V, delivering up to 200mA output current. Designed for surface mounting in a TO-252-3 package, it operates across a wide temperature range of -40°C to 125°C. Features include a low input bias current of 15uA and a quiescent current of 6uA, with a Power Supply Rejection Ratio (PSRR) of 63dB.
PackageTO-252-3
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BD733L2FP-CE2 technical specifications.
General
| Package/Case | TO-252-3 |
| Dropout Voltage | 600mV |
| Input Bias Current | 15uA |
| Max Input Voltage | 45V |
| Min Input Voltage | 4.37V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Min Output Voltage | 3.3V |
| Max Power Dissipation | 1.3mW |
| Max Supply Current | 15uA |
| Mount | Surface Mount |
| Nominal Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Operating Supply Current | 6uA |
| Output Configuration | Positive |
| Output Current | 200mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 63dB |
| Quiescent Current | 6uA |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Weight | 0.139332oz |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BD733L2FP-CE2 Datasheet
Download the complete datasheet for Rohm BD733L2FP-CE2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

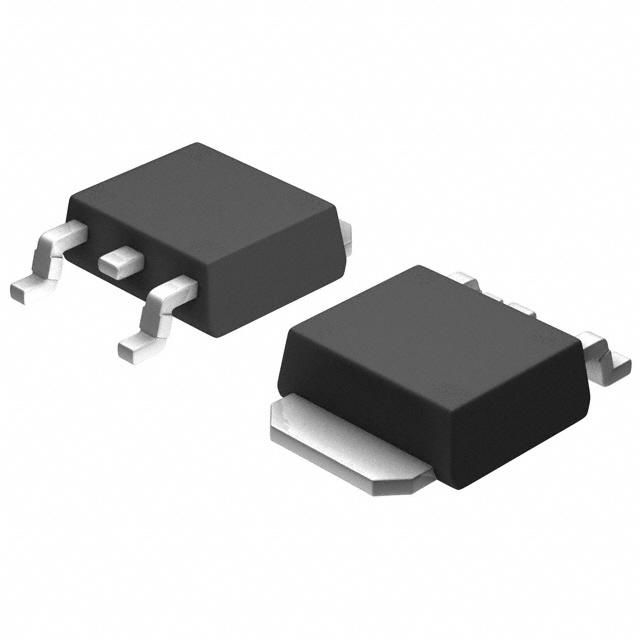

Product Images
