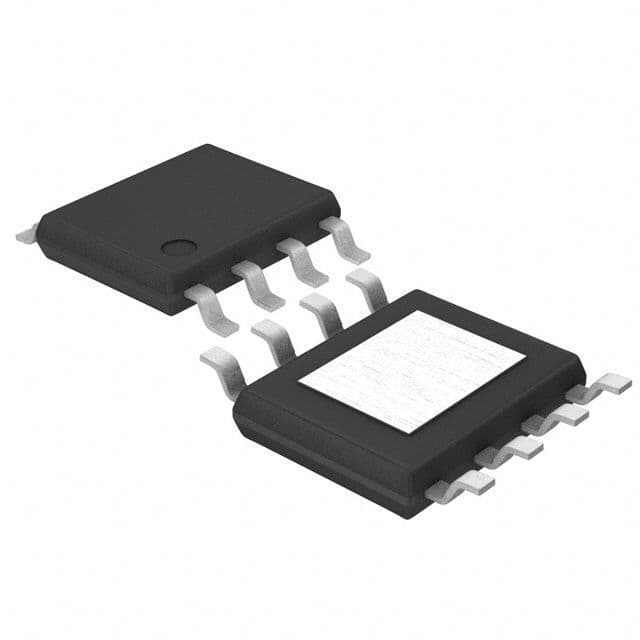

The BD750L2EFJ-CE2 is a 5V linear voltage regulator with a maximum output current of 200mA and a maximum power dissipation of 750mW. It operates over a temperature range of -40°C to 125°C and is compliant with AEC-Q100. The regulator is packaged in an HTSOP-8 surface mount package and is available in quantities of 2500 on tape and reel. The device features a nominal output voltage of 5V and is suitable for automotive applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Rohm BD750L2EFJ-CE2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Plating | Copper, Tin |
| Dropout Voltage | 400mV |
| Max Input Voltage | 45V |
| Min Input Voltage | 5.8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Power Dissipation | 750mW |
| Mount | Surface Mount |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 200mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| RoHS | Compliant |
