Surface mount DC/DC switching regulator with current-mode control. Features a maximum output current of 2A and an adjustable output voltage range from 1V to 2.5V. Operates with a switching frequency up to 1MHz and supports a maximum input voltage of 5.5V. Includes synchronous rectification and is RoHS compliant with copper and tin contact plating.
Frequency1MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BD9130EFJ-E2 technical specifications.
General
Contact Plating
Copper, Tin
Frequency
1MHz
Lead Free
Lead Free
Max Input Voltage
5.5V
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Max Output Current
2A
Max Output Voltage
2.5V
Min Output Voltage
1V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
3.3V
Output Current
2A
Output Type
Adjustable
Output Voltage
2.5V
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Switching Frequency-Max
1MHz
Synchronous Rectifier
Yes
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Rohm BD9130EFJ-E2 Datasheet
Download the complete datasheet for Rohm BD9130EFJ-E2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

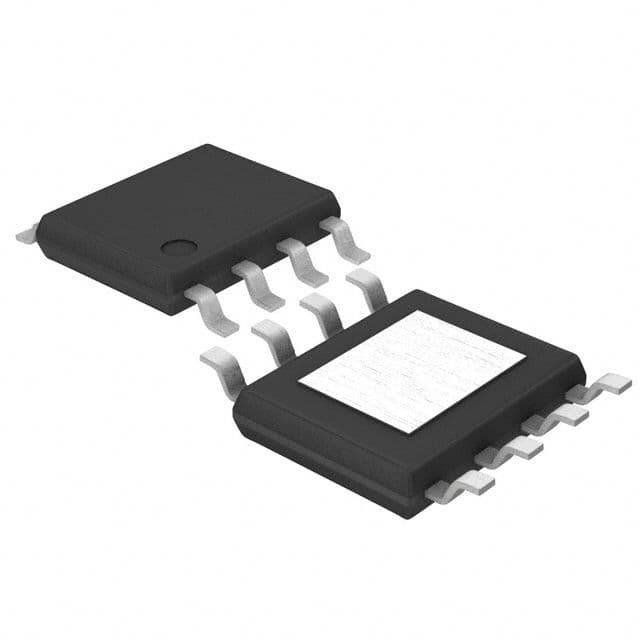

Product Images
