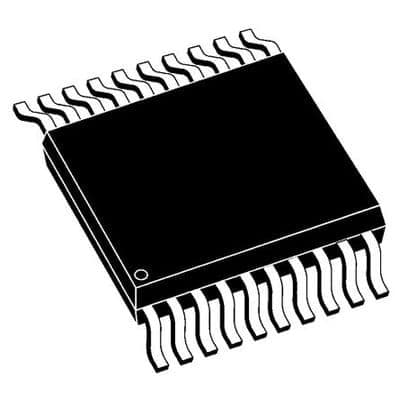

12-channel, 8-bit digital-to-analog converter (DAC) with serial input loading via a 3-wire SPI interface. Features unipolar voltage output, a settling time of 100µs, and integral nonlinearity of 1.5 LSB. Operates with a supply voltage range of 2.7V to 5.5V. Housed in a 20-pin SSOP package with copper and tin contact plating, measuring 6.5mm x 4.4mm x 1.05mm. RoHS compliant and supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Rohm BH2221FV-E2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SSOP |
| Contact Plating | Copper, Tin |
| Differential Output | No |
| Height | 1.05mm |
| Integral Nonlinearity (INL) | 1.5LSB |
| Interface | Serial, 3-WIRE, SPI |
| Lead Free | Contains Lead |
| Length | 6.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Converters | 12 |
| Number of D/A Converters | 12 |
| Number of DAC Channels | 12 |
| Operating Supply Voltage | 3V |
| Output Polarity | Unipolar |
| Output Type | Voltage |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Settling Time | 100us |
| Width | 4.4mm |
| RoHS | Compliant |
