Fixed positive linear voltage regulator, 2.8V nominal output, with 150mA maximum output current. Features 1% accuracy and a 100mV dropout voltage. Operates from a 2.5V to 5.5V input voltage range, with a maximum power dissipation of 530mW. Packaged in a compact 1mm x 1.04mm PBGA4 CSP, suitable for surface mount applications. RoHS compliant with copper, tin, and silver contact plating.
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BH28RB1WGUT-E2 technical specifications.
General
| Accuracy | 1% |
| Contact Plating | Copper, Tin, Silver |
| Dropout Voltage | 100mV |
| Height | 0.39mm |
| Lead Free | Lead Free |
| Length | 1.04mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Max Output Voltage | 2.8V |
| Max Power Dissipation | 530mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Nominal Output Voltage | 2.8V |
| Number of Outputs | 1 |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 2.8V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 1mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BH28RB1WGUT-E2 Datasheet
Download the complete datasheet for Rohm BH28RB1WGUT-E2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

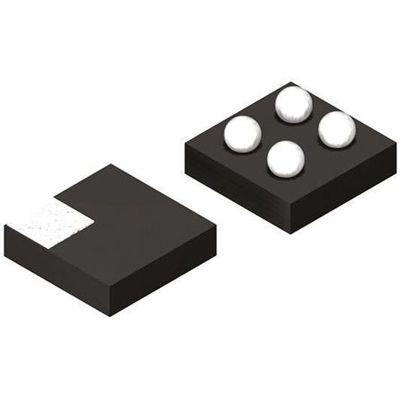

Product Images
