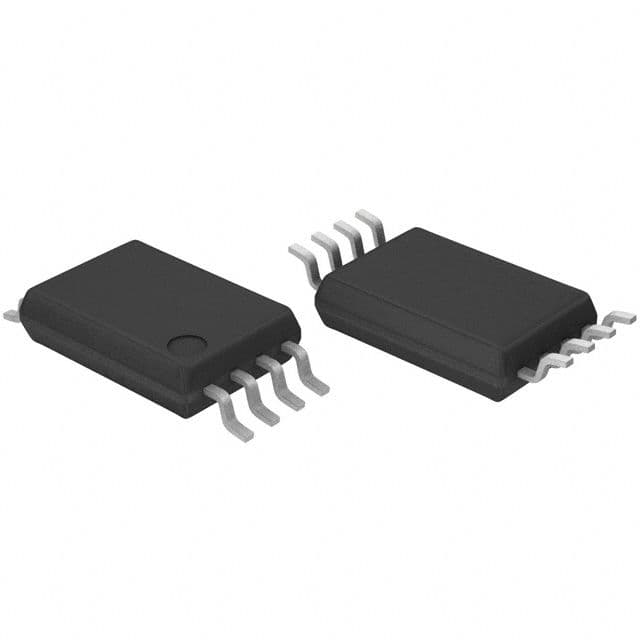

The BR24C21FV-E2 is a 1Kb EEPROM memory IC with an organization of 128 x 8. It operates over a temperature range of -40°C to 85°C and has a maximum supply voltage of 5.5V. The device is RoHS compliant and is packaged in a ROHS COMPLIANT, SSOP-8 package. It features an I2C and serial interface with a maximum frequency of 400kHz. The memory type is EEPROM and it has a density of 1Kb.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Rohm BR24C21FV-E2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Rohm BR24C21FV-E2 technical specifications.
| Package/Case | LSSOP |
| Contact Plating | Copper, Tin |
| Density | 1Kb |
| Interface | I2C, Serial, 2-Wire |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 1Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Organization | 128 x 8 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| RoHS | Compliant |
