10-bit, 4-channel Digital-to-Analog Converter (DAC) with serial input loading. Features a 7µs settling time and a 10MS/s sampling rate. Operates from a single 4.5V to 5.5V supply, with a typical supply current of 850µA. Package is SSOP-14 with 0.65mm pitch, suitable for surface mounting. Integral nonlinearity is 3.5LSB.
PackageSSOP
Current850uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BU2508FV-E2 technical specifications.
General
Package/Case
SSOP
Contact Plating
Copper, Tin
Height
1.05mm
Input Type
SERIAL
Integral Nonlinearity (INL)
3.5LSB
Interface
Serial, 3-WIRE
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
10
Number of Channels
4
Number of Converters
4
Number of D/A Converters
4
Number of DAC Channels
4
Operating Supply Voltage
5V
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
10MS/s
Settling Time
7us
Supply Current
850uA
Supply Type
Single
Termination
SMD/SMT
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Rohm BU2508FV-E2 Datasheet
Download the complete datasheet for Rohm BU2508FV-E2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

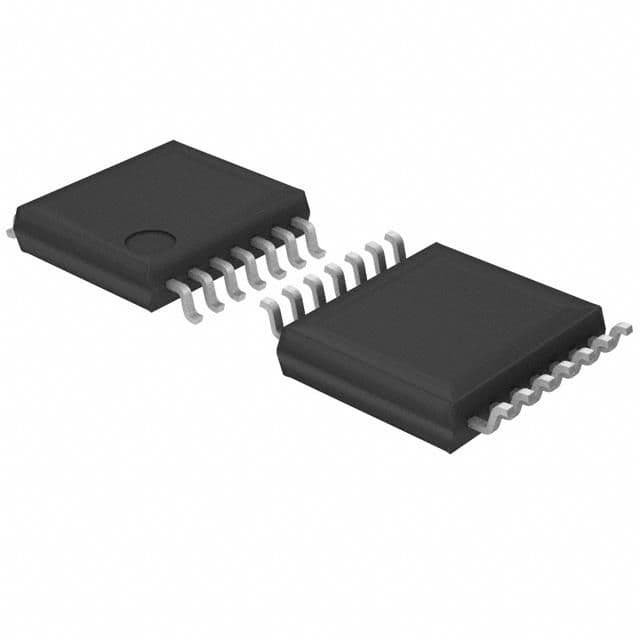

Product Images
