CMOS power supply support circuit featuring a fixed +1.2V threshold voltage with 1% accuracy. This integrated circuit monitors a single voltage input, providing an active-low reset output. Designed for surface mounting in a VSOF-5 package, it operates across a wide temperature range of -40°C to 125°C with a maximum supply voltage of 7V. Low operating supply current of 550nA and a typical supply current of 150nA make it suitable for power-sensitive applications.
PackageVSOF
Current150nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BU4212FVE-TR technical specifications.
General
Accuracy
1%
Package/Case
VSOF
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
210mW
Max Reset Threshold Voltage
1.212V
Min Reset Threshold Voltage
1.188V
Max Supply Current
1.75uA
Max Supply Voltage
7V
Min Supply Voltage
700mV
Mount
Surface Mount
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
550nA
Package Quantity
3000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Reset
Active Low
RoHS Compliant
Yes
Supply Current
150nA
Threshold Voltage
1.2V
Type
Simple Reset/Power-On Reset
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Rohm BU4212FVE-TR Datasheet
Download the complete datasheet for Rohm BU4212FVE-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

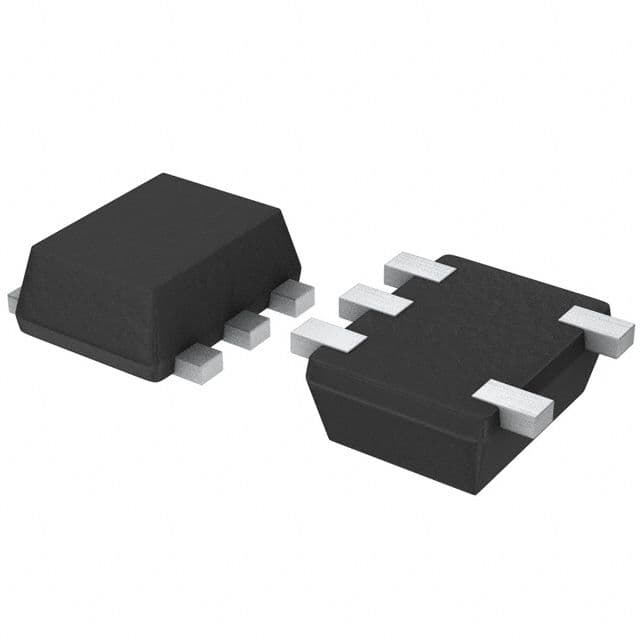

Product Images
