CMOS power supply support circuit featuring a fixed +3V threshold voltage with 1% accuracy. This surface mount device offers a single channel for monitoring, active low reset, and operates within a 700mV to 7V supply voltage range. It boasts a low operating supply current of 550nA and a maximum supply current of 1.75µA, with a maximum power dissipation of 210mW. Packaged in VSOF-5, this RoHS compliant component is suitable for applications requiring reliable power-on reset functionality.
PackageVSOF
MountingSurface Mount
Power210mW
Quick Jump:
Technical Specifications
Rohm BU4230FVE-TR technical specifications.
General
Accuracy
1%
Package/Case
VSOF
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
210mW
Max Reset Threshold Voltage
3.03V
Min Reset Threshold Voltage
2.97V
Max Supply Current
1.75uA
Max Supply Voltage
7V
Min Supply Voltage
700mV
Mount
Surface Mount
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
550nA
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
210mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reset
Active Low
RoHS Compliant
Yes
Series
BU42
Threshold Voltage
3V
Type
Simple Reset/Power-On Reset
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Rohm BU4230FVE-TR Datasheet
Download the complete datasheet for Rohm BU4230FVE-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

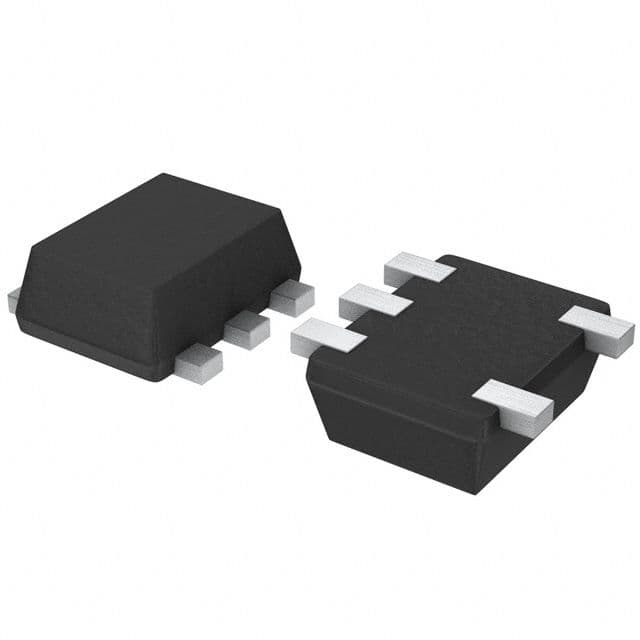

Product Images
