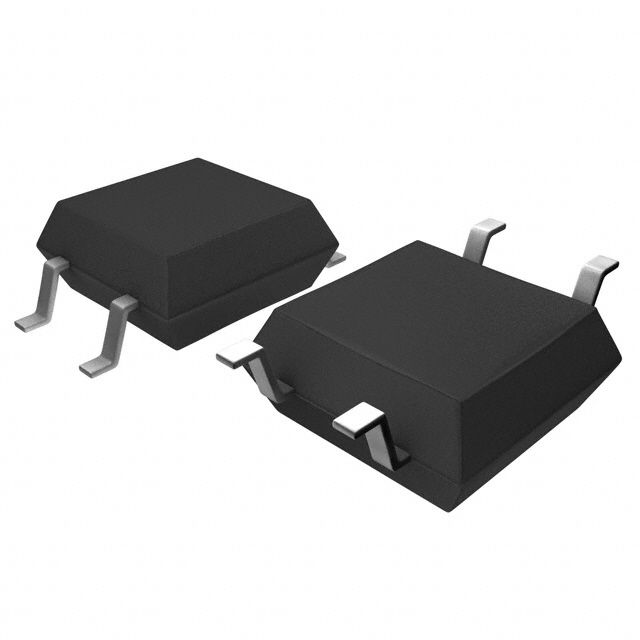

CMOS voltage detector for power supply monitoring. Features a fixed 2.7V threshold voltage with 1% accuracy, operating from 700mV to 7V. Provides active high/low reset output and boasts a low operating supply current of 550nA. Housed in a compact SOP package for surface mounting, this component is RoHS compliant and operates across a wide temperature range of -40°C to 125°C.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BU4827F-TR technical specifications.
General
Accuracy
1%
Package/Case
SOP
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
400mW
Max Reset Threshold Voltage
2.727V
Min Reset Threshold Voltage
2.673V
Max Supply Current
1.23uA
Max Supply Voltage
7V
Min Supply Voltage
700mV
Mount
Surface Mount
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
550nA
Overvoltage Threshold
2.727V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
400nA
Reset
Active High/Active Low
RoHS Compliant
Yes
Threshold Voltage
2.7V
Type
Simple Reset/Power-On Reset, Voltage Detector
Undervoltage Threshold
2.673V
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Rohm BU4827F-TR Datasheet
Download the complete datasheet for Rohm BU4827F-TR to view detailed technical specifications.
