CMOS NOR Gate IC, 1-function, 2-input logic, operating from 3V to 16V. Features a 3.4mA output current and 30ns propagation delay. Packaged in a 5-pin SSOP for surface mounting, this RoHS compliant component offers a wide operating temperature range of -40°C to 85°C.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BU4S01G2-TR technical specifications.
General
| Package/Case | SSOP |
| High Level Output Current | 3.4mA |
| Lead Free | Lead Free |
| Logic Function | NOR GATE |
| Low Level Output Current | 3.4mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3.4mA |
| Max Supply Current | 10mA |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Functions | 1 |
| Number of Gates | 1 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Output Current | 3.4mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 30ns |
| Quiescent Current | 1uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 4S |
| Supply Voltage-Nom | 16V |
| Technology | CMOS |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BU4S01G2-TR Datasheet
Download the complete datasheet for Rohm BU4S01G2-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

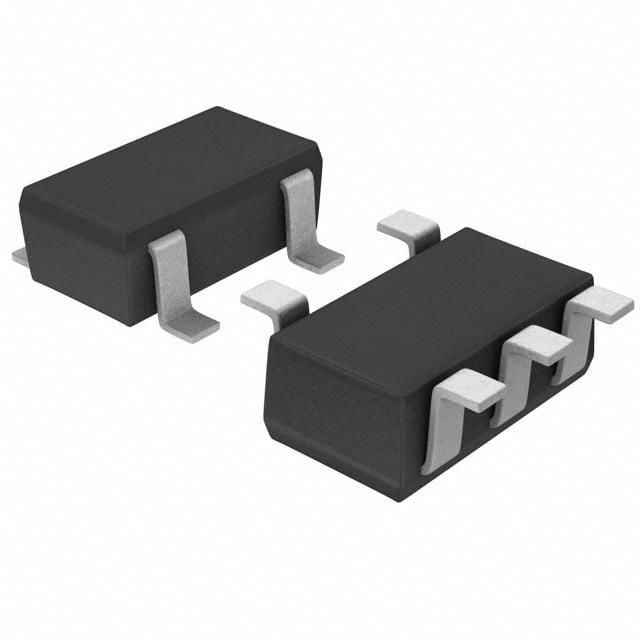

Product Images
