PackageSOT-416
Current Rating100mA
MountingSurface Mount
Power150mW
Quick Jump:
Technical Specifications
Rohm DA221TL technical specifications.
General
Average Rectified Current
100mA
Package/Case
SOT-416
Current Rating
100mA
Forward Current
200mA
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
300mA
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
150mW
Max Repetitive Reverse Voltage (Vrrm)
20V
Max Reverse Leakage Current
100nA
Max Reverse Voltage (DC)
20V
Max Surge Current
200mA
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
300mA
Power Dissipation
150mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Rohm DA221TL Datasheet
Download the complete datasheet for Rohm DA221TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

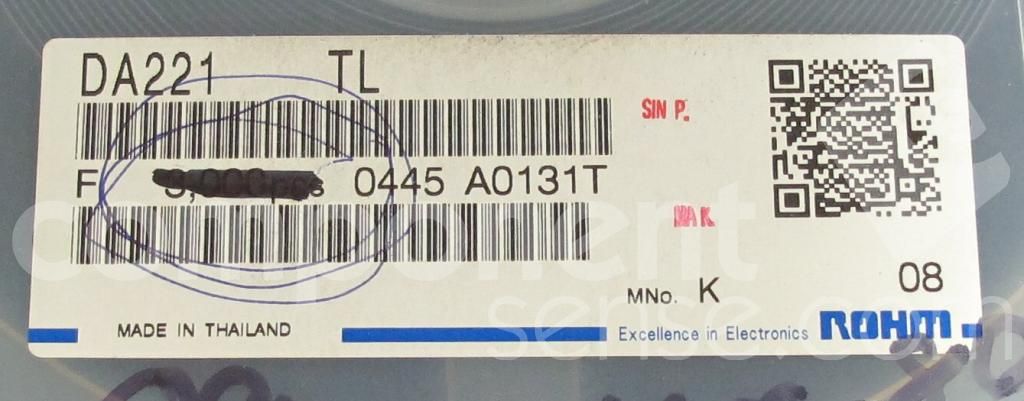

Product Images
