Technical Specifications
Rohm DTC144ESATP technical specifications.
General
| Collector Emitter Breakdown Voltage | 50V |
| Collector-emitter Voltage-Max | 300mV |
| Current Rating | 30mA |
| hFE Min | 68 |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 50V |
| Max Collector Current | 30mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300mW |
| Mount | Through Hole |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Transition Frequency | 250MHz |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Rohm DTC144ESATP Datasheet
Download the complete datasheet for Rohm DTC144ESATP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

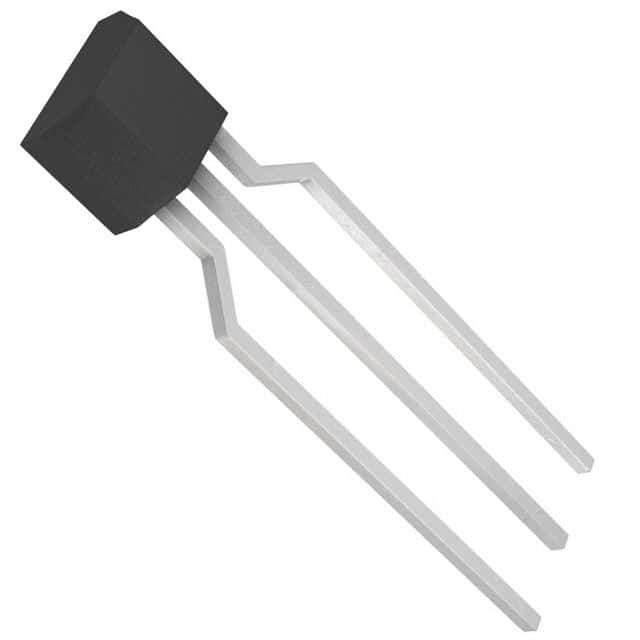

Product Images
