Dual NPN/PNP Bipolar Junction Transistor (BJT) for small signal applications. Features a 50V collector-emitter breakdown voltage and 150mA continuous collector current. Operates with a minimum hFE of 120 and a transition frequency of 140MHz. Packaged in an SC-74A surface-mount case, this RoHS compliant component offers a wide operating temperature range from -55°C to 150°C.
PackageSMD/SMT
Current Rating150mA
MountingSurface Mount
PolarityNPN, PNP
Quick Jump:
Technical Specifications
Rohm FMY1AT148 technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Voltage (VCEO) | 50V |
| Collector-emitter Voltage-Max | 400mV |
| Continuous Collector Current | 150mA |
| Current Rating | 150mA |
| Emitter Base Voltage (VEBO) | 7V |
| Gain Bandwidth Product | 180MHz |
| hFE Min | 120 |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 50V |
| Max Collector Current | 150mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300mW |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN, PNP |
| Power Dissipation | 300mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 140MHz |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Rohm FMY1AT148 Datasheet
Download the complete datasheet for Rohm FMY1AT148 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

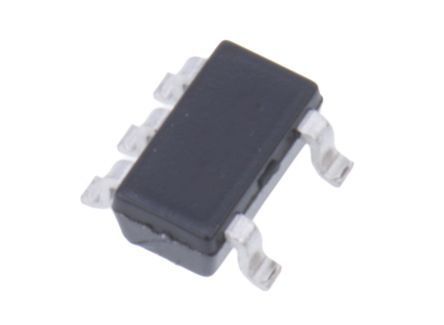

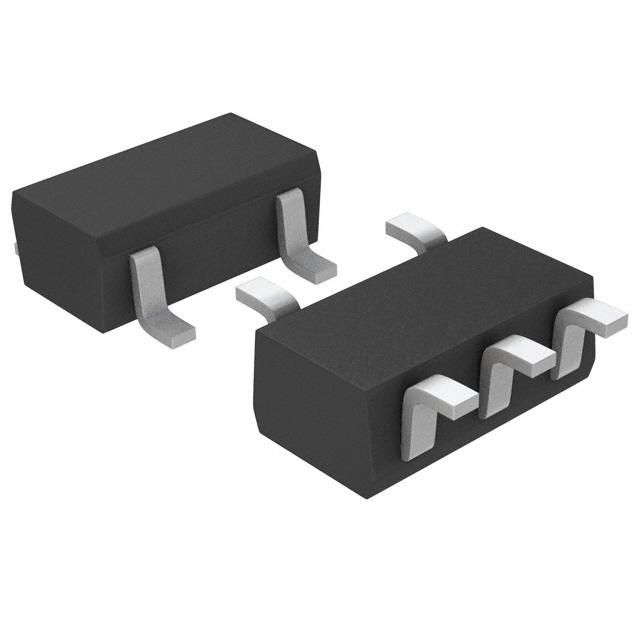

Product Images
