The MCR50JZHJ564 is a fixed chip resistor from Rohm with a DC rated voltage of 200V and a tolerance of 5%. It features automotive AEC-Q200 ratings and is compliant with RoHS regulations. The resistor has a maximum power dissipation of 500mW and operates within a temperature range of -55°C to 155°C. It is packaged in a 2010 case code, suitable for surface mount applications.
Package2010
Resistance560kR
Quick Jump:
Technical Specifications
Rohm MCR50JZHJ564 technical specifications.
General
| Case Code (Imperial) | 2010 |
| Case Code (Metric) | 5025 |
| Package/Case | 2010 |
| Features | Automotive AEC-Q200 |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Number of Terminations | 2 |
| Packaging | Cut Tape |
| Ratings | AEC-Q200 |
| Resistance | 560kR |
| RoHS Compliant | Yes |
| Series | MCR |
| Tolerance | 5% |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Rohm MCR50JZHJ564 Datasheet
Download the complete datasheet for Rohm MCR50JZHJ564 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

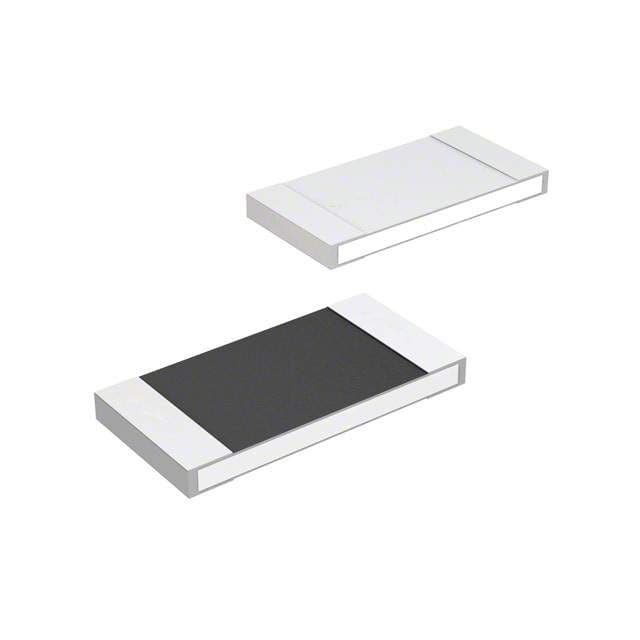

Product Images
