The RB056L-40TE25 is a general purpose rectifier diode from Rohm, with a maximum operating temperature of 150°C and a minimum operating temperature of -40°C. It has a maximum reverse voltage of 40V and a maximum reverse current of 50uA. The diode is lead free and RoHS compliant, and is packaged in a surface mount R-PDSO-C2 package.
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm RB056L-40TE25 technical specifications.
General
| Average Rectified Current | 3A |
| Forward Current | 3A |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 50uA |
| Max Reverse Leakage Current | 100uA |
| Max Reverse Voltage (DC) | 40V |
| Max Surge Current | 70A |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 70A |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Rohm RB056L-40TE25 Datasheet
Download the complete datasheet for Rohm RB056L-40TE25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

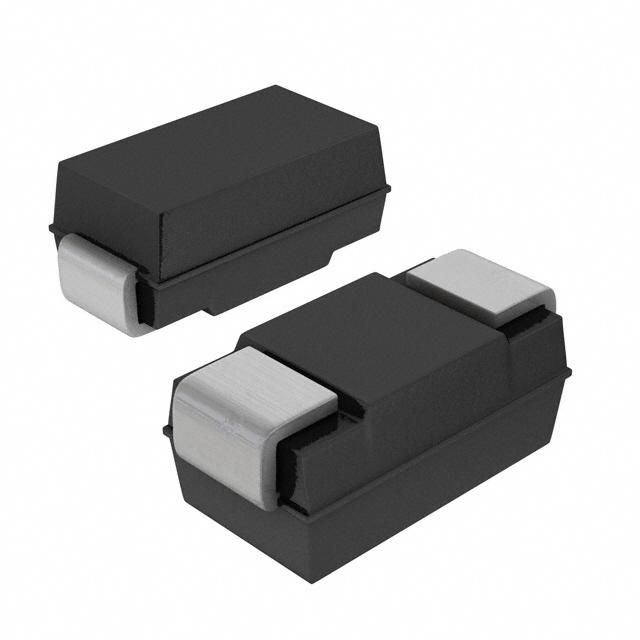

Product Images
