Technical Specifications
Rohm RB160VA-40TR technical specifications.
General
| Average Rectified Current | 1A |
| Package/Case | SMD/SMT |
| Forward Current | 1A |
| Height | 0.6mm |
| Lead Free | Lead Free |
| Length | 1.9mm |
| Max Forward Surge Current (Ifsm) | 10A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 50uA |
| Max Reverse Leakage Current | 50uA |
| Max Reverse Voltage (DC) | 40V |
| Max Surge Current | 5A |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 5A |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm RB160VA-40TR Datasheet
Download the complete datasheet for Rohm RB160VA-40TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

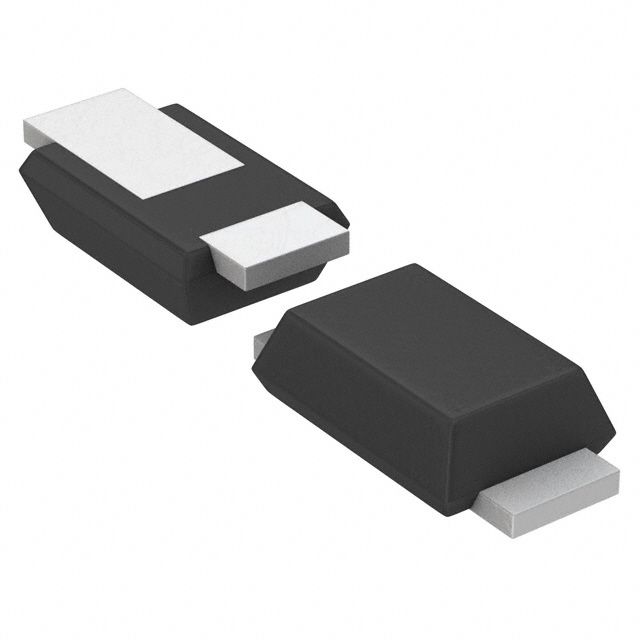

Product Images
