The RB228T100 is a general purpose rectifier with a maximum operating temperature of 150°C and a minimum operating temperature of -40°C. It has a maximum repetitive reverse voltage of 110V and a maximum reverse current of 150uA. The device is packaged in a TO-220-3 package and is suitable for through hole mounting. The RB228T100 is RoHS compliant and has a weight of 0.211644oz.
PackageTO-220-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Rohm RB228T100 technical specifications.
General
| Average Rectified Current | 30A |
| Package/Case | TO-220-3 |
| Forward Current | 30A |
| Max Forward Surge Current (Ifsm) | 100A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 110V |
| Max Reverse Current | 150uA |
| Max Reverse Voltage (DC) | 100V |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| Peak Non-Repetitive Surge Current | 100A |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Weight | 0.211644oz |
Compliance
| RoHS | Compliant |
Datasheet
Rohm RB228T100 Datasheet
Download the complete datasheet for Rohm RB228T100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

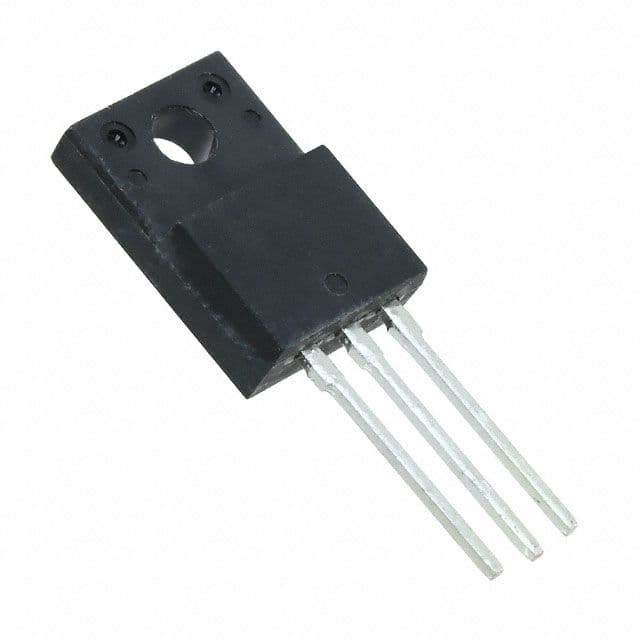

Product Images
