The RB481Y-90T2R is a surface mount general purpose rectifier from Rohm with a maximum operating temperature of 125°C. It has a maximum reverse voltage of 90V and a maximum reverse current of 100uA. The device is RoHS compliant and has a maximum forward surge current of 1A. It is available in a package quantity of 8000 units, packaged in tape and reel. The RB481Y-90T2R is suitable for use in a variety of applications where a general purpose rectifier is required.
Current Rating100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm RB481Y-90T2R technical specifications.
General
| Average Rectified Current | 100mA |
| Current Rating | 100mA |
| Forward Current | 100mA |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 1A |
| Max Operating Temperature | 125°C |
| Max Repetitive Reverse Voltage (Vrrm) | 90V |
| Max Reverse Current | 100uA |
| Max Reverse Leakage Current | 100uA |
| Max Reverse Voltage (DC) | 90V |
| Max Surge Current | 1A |
| Mount | Surface Mount |
| Package Quantity | 8000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 1A |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 90V |
Compliance
| RoHS | Compliant |
Datasheet
Rohm RB481Y-90T2R Datasheet
Download the complete datasheet for Rohm RB481Y-90T2R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

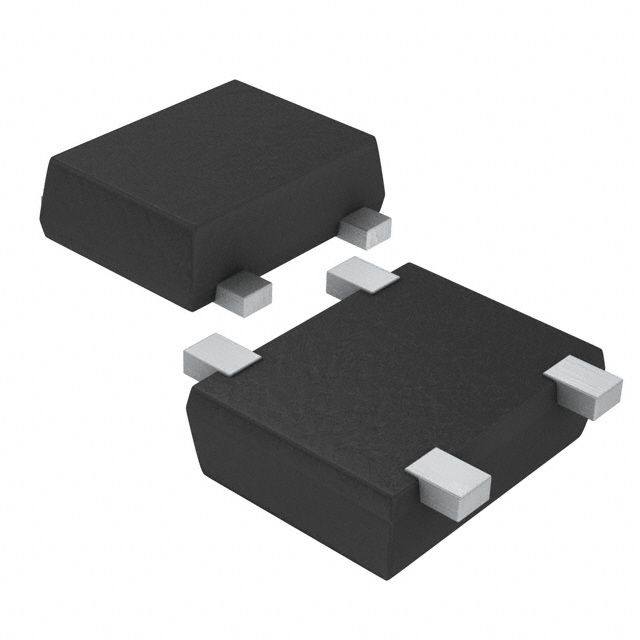

Product Images
