Technical Specifications
Rohm RB496EATR technical specifications.
General
| Average Rectified Current | 1A |
| Package/Case | SOT-23-5 |
| Current Rating | 1A |
| Forward Current | 1A |
| Height | 0.85mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 20V |
| Max Reverse Current | 500uA |
| Max Reverse Leakage Current | 500uA |
| Max Reverse Voltage (DC) | 20V |
| Max Surge Current | 10A |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 10A |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 20V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm RB496EATR Datasheet
Download the complete datasheet for Rohm RB496EATR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

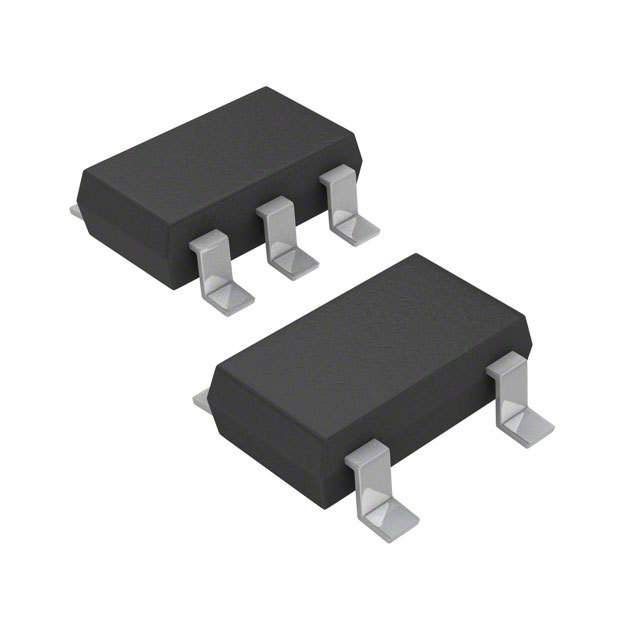

Product Images
