Technical Specifications
Rohm RB501V-40TE-17 technical specifications.
General
| Average Rectified Current | 100mA |
| Capacitance | 6pF |
| Package/Case | SOD-323-2 |
| Current Rating | 100mA |
| Forward Current | 100mA |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 45V |
| Max Reverse Current | 30uA |
| Max Reverse Voltage (DC) | 40V |
| Mount | Surface Mount |
| Output Current | 100mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 1A |
| Polarity | Standard |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 45V |
Compliance
| RoHS | Compliant |
Datasheet
Rohm RB501V-40TE-17 Datasheet
Download the complete datasheet for Rohm RB501V-40TE-17 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

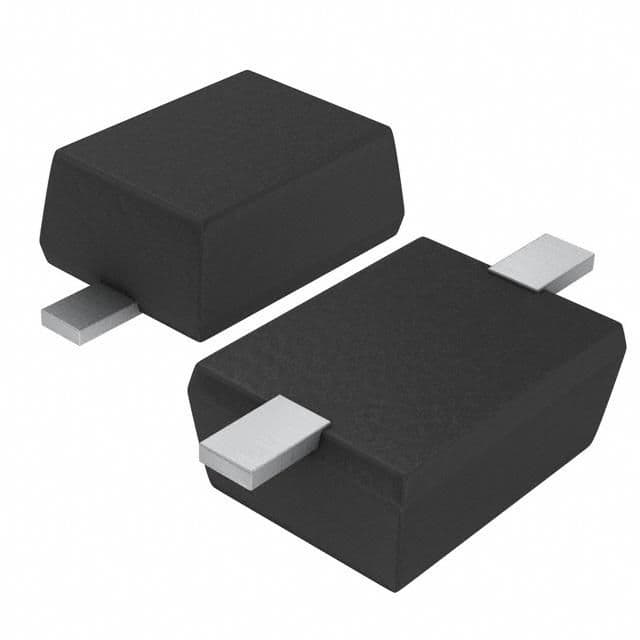

Product Images
