Schottky rectifier diode featuring a 45V repetitive reverse voltage (Vrrm) and 45V DC rated voltage. This surface mount component offers a 30mA forward current and 15mA average rectified current, with a maximum reverse leakage current of 1uA. Housed in a compact SOT-346 package, it operates within a temperature range of -40°C to 125°C and is RoHS compliant.
PackageSOT-346
Current Rating30mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm RB706D-40T146 technical specifications.
General
| Average Rectified Current | 15mA |
| Package/Case | SOT-346 |
| Current Rating | 30mA |
| Forward Current | 30mA |
| Height | 1.1mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Forward Surge Current (Ifsm) | 200mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 45V |
| Max Reverse Current | 1uA |
| Max Reverse Leakage Current | 1uA |
| Max Reverse Voltage (DC) | 40V |
| Max Surge Current | 200mA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 200mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 45V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm RB706D-40T146 Datasheet
Download the complete datasheet for Rohm RB706D-40T146 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

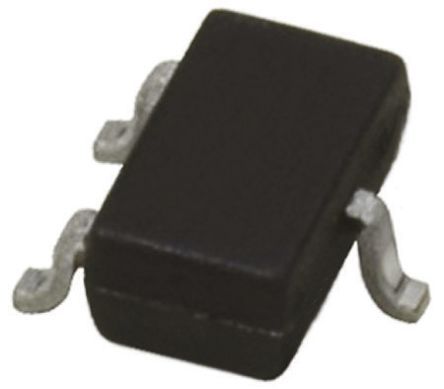

Product Images
