Surface mount rectifier diode featuring Schottky barrier technology. This general-purpose rectifier handles 30mA forward current and 40V repetitive reverse voltage. It offers a low capacitance of 2pF and a maximum reverse leakage current of 500nA. The component is housed in a compact SC-104A package (1mm x 0.6mm x 0.5mm) and is supplied on tape and reel. It is RoHS compliant and lead-free.
PackageSMD/SMT
Capacitance2pF
Current Rating30mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm RB751G-40T2R technical specifications.
General
| Average Rectified Current | 30mA |
| Capacitance | 2pF |
| Package/Case | SMD/SMT |
| Current Rating | 30mA |
| Forward Current | 30mA |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Length | 1mm |
| Max Forward Surge Current (Ifsm) | 200mA |
| Max Operating Temperature | 125°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 500nA |
| Max Reverse Leakage Current | 500nA |
| Max Reverse Voltage (DC) | 30V |
| Max Surge Current | 200mA |
| Mount | Surface Mount |
| Output Current | 30mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 200mA |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 40V |
| Width | 0.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm RB751G-40T2R Datasheet
Download the complete datasheet for Rohm RB751G-40T2R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

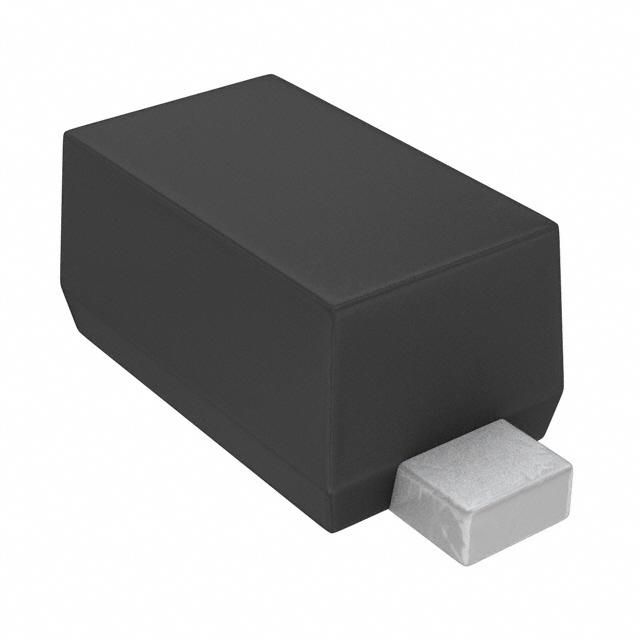

Product Images
