Schottky rectifier diode, single element, featuring a 40V repetitive reverse voltage (Vrrm) and 30mA average rectified current. This surface mount component offers a low forward voltage drop and a fast 5ns reverse recovery time. Its compact SC-79 package measures 1.2mm x 0.8mm x 0.6mm, with a capacitance of 2pF. Designed for general-purpose rectification, it handles a peak non-repetitive surge current of 200mA and is RoHS compliant.
PackageSC
Capacitance2pF
Current Rating30mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm RB751S-40TE61 technical specifications.
General
| Average Rectified Current | 30mA |
| Capacitance | 2pF |
| Package/Case | SC |
| Current Rating | 30mA |
| Forward Current | 30mA |
| Height | 0.6mm |
| Lead Free | Lead Free |
| Length | 1.2mm |
| Max Forward Surge Current (Ifsm) | 200mA |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 500nA |
| Max Reverse Leakage Current | 500nA |
| Max Reverse Voltage (DC) | 30V |
| Max Surge Current | 200mA |
| Mount | Surface Mount |
| Output Current | 30mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 200mA |
| Polarity | Standard |
| Radiation Hardening | No |
| Reverse Recovery Time | 5ns |
| RoHS Compliant | Yes |
| DC Rated Voltage | 40V |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm RB751S-40TE61 Datasheet
Download the complete datasheet for Rohm RB751S-40TE61 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

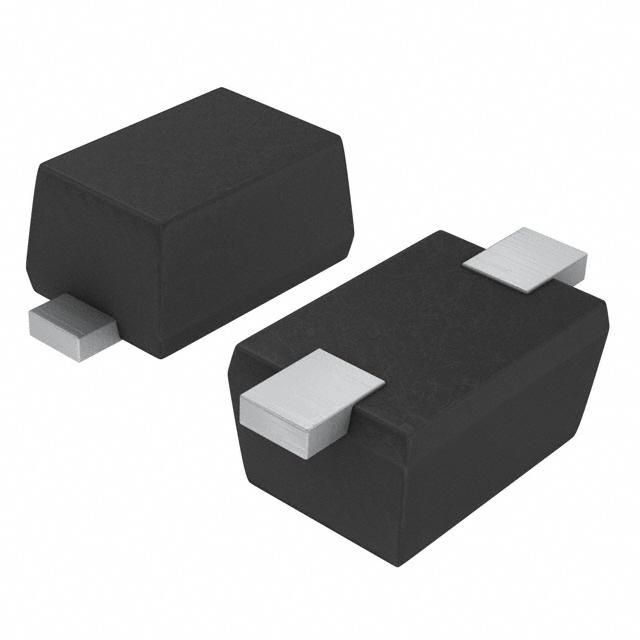

Product Images
