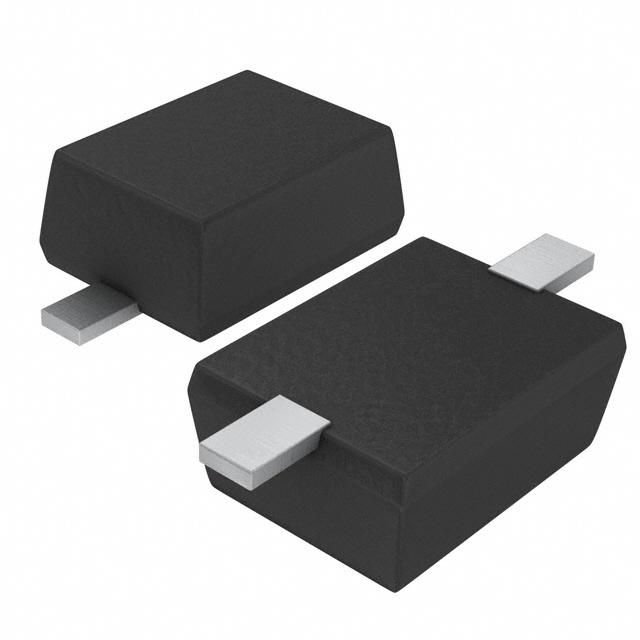

RB751V-40TE-17

Name: RB751V-40TE-17 Rohm
Brand: Rohm
SKU: RB751V-40TE-17

Rectifier Diode, Schottky, 1 Element, 0.03A, 30V V(RRM), Silicon, UMD2, 2 PIN

Capacitance2pF

Current Rating30mA

MountingSurface Mount

PolarityStandard

Quick Jump:

Rohm RB751V-40TE-17 technical specifications.

Average Rectified Current	30mA
Capacitance	2pF
Current Rating	30mA
Forward Current	30mA
Lead Free	Lead Free
Max Forward Surge Current (Ifsm)	200mA
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Repetitive Reverse Voltage (Vrrm)	40V
Max Reverse Current	500nA
Max Reverse Leakage Current	500nA
Max Reverse Voltage (DC)	30V
Max Surge Current	200mA
Mount	Surface Mount
Output Current	30mA
Package Quantity	3000
Packaging	Tape and Reel
Peak Non-Repetitive Surge Current	200mA
Polarity	Standard
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
DC Rated Voltage	40V

RoHS

Compliant
