N-channel JFET, surface mount, SOT-23 package. Features 60V drain-source breakdown voltage, 300mA continuous drain current, and 1.5 Ohm maximum drain-source on-resistance. Operates from -55°C to 150°C with 200mW power dissipation. Includes 2.5V threshold voltage and 5ns fall time. RoHS compliant.
PackageSOT-23
Current Rating300mA
MountingSurface Mount
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Rohm RK7002AT116 technical specifications.
General
| Package/Case | SOT-23 |
| Continuous Drain Current (ID) | 300mA |
| Current Rating | 300mA |
| Drain to Source Breakdown Voltage | 60V |
| Drain to Source Resistance | 1.1R |
| Drain to Source Voltage (Vdss) | 60V |
| Drain-source On Resistance-Max | 1.5R |
| Fall Time | 5ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 0.95mm |
| Input Capacitance | 33pF |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Rds On Max | 1R |
| RoHS Compliant | Yes |
| Threshold Voltage | 2.5V |
| Turn-Off Delay Time | 13ns |
| Turn-On Delay Time | 6ns |
| DC Rated Voltage | 60V |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm RK7002AT116 Datasheet
Download the complete datasheet for Rohm RK7002AT116 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

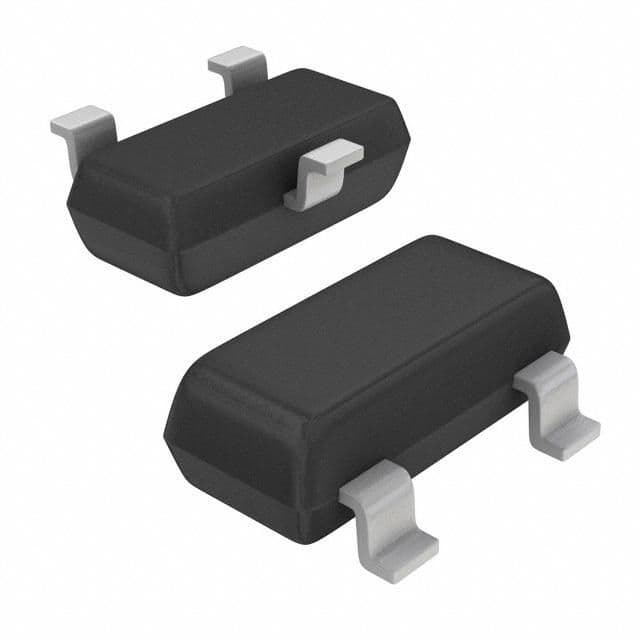

Product Images
