Silicon RF diode for attenuator applications. Features 50V reverse voltage, 50mA forward current, and 100mW power dissipation. Operates from -55°C to 125°C. Surface mountable in a SOT-323 package. RoHS compliant and lead-free.
PackageSOT-323
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm RN739FT106 technical specifications.
General
| Application(s) | ATTENUATOR |
| Package/Case | SOT-323 |
| Current Rating | 50mA |
| Forward Current | 50mA |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Current Rating | 50mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Max Repetitive Reverse Voltage (Vrrm) | 50V |
| Max Reverse Current | 100nA |
| Mount | Surface Mount |
| Output Current | 50mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage (DC) | 50V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 50V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm RN739FT106 Datasheet
Download the complete datasheet for Rohm RN739FT106 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

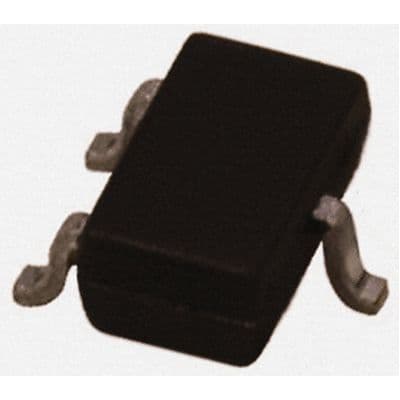

Product Images
