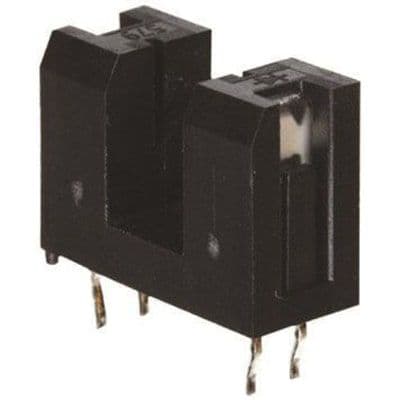

The RPI-579N1 phototransistor has a collector-emitter breakdown voltage of 30V and a maximum collector current of 30mA. It is designed for through hole mounting with a height of 10mm and a length of 13.8mm, and a width of 6mm. The device is RoHS compliant and has a maximum operating temperature of 85°C and a minimum operating temperature of -25°C. The RPI-579N1 has a response time of 10us and a fall time of 10us.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Rohm RPI-579N1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Rohm RPI-579N1 technical specifications.
| Collector Emitter Breakdown Voltage | 30V |
| Collector-emitter Voltage-Max | 30V |
| Contact Plating | Copper, Tin, Silver |
| Fall Time | 10us |
| Forward Current | 50mA |
| Height | 10mm |
| Lead Free | Lead Free |
| Length | 13.8mm |
| Max Collector Current | 30mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Output Configuration | Phototransistor |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Power Dissipation | 80mW |
| Reach SVHC Compliant | No |
| Response Time | 10us |
| RoHS Compliant | Yes |
| DC Rated Voltage | 1.3V |
| Wavelength | 950nm |
| Width | 6mm |
| RoHS | Compliant |
