NPN phototransistor for surface mount applications, featuring a side-view orientation and a domed lens. This optical sensor operates with a maximum collector current of 20mA and a collector-emitter breakdown voltage of 32V. It offers a narrow viewing angle of 12° and a peak sensitivity wavelength of 800nm. The component is RoHS compliant, lead-free, and designed for operation between -30°C and 85°C, with a maximum power dissipation of 75mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Rohm RPM-012PBT87 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Collector Emitter Breakdown Voltage | 32V |
| Collector-emitter Voltage-Max | 32V |
| Fall Time | 10us |

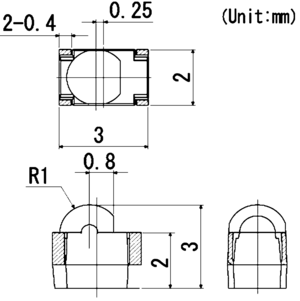

| Height | 3mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lens Style | Domed |
| Max Breakdown Voltage | 32V |
| Max Collector Current | 20mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Power Dissipation | 75mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Orientation | Side View |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Consumption | 75mW |
| Power Dissipation | 75mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Viewing Angle | 12° |
| Wavelength | 800nm |
| Width | 2mm |
| RoHS | Compliant |
